10m x 8m Wind Tunnel


Model : R1
now set up for Force Balance Measurements

Now enter model dimensions, enter atmospheric data, set tunnel conditions and then start measurement run.

Operating Procedure :

1. Measure section geometry, enter data
     Wing Reference Area (m2)

     Wing Reference Length (m)

2. Measure ambient pressure
     Lab Pressure (KPa)

3. Measure tunnel air temperature
     Air Temperature (Kelvin)

4.Set angle of attack range for traverse
     Start Angle of Attack (Deg)

     Final Angle of Attack (Deg)

5. Select Wind velocity for run
     Tunnel Wind Speed (m/s)


Once you have correctly set all inputs then click the 'Start' button

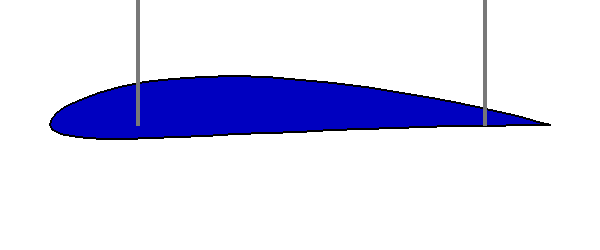

Side View

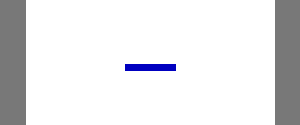

Front View
